The DuraTech Wall Strap is used for interior and exterior installations to provide lateral support for the chimney pipe. The Wall Strap is required every 8 ft. above either the tee support for through the wall installation and the ceiling box for a through the ceiling or inside a chase installation. The Wall Strap is adjustable and will extend 2″ to 6″ from the side of the wall.
Note: The Wall Strap does not provide vertical support or load bearing. It is just for lateral stabilization.
Measurement Chart:

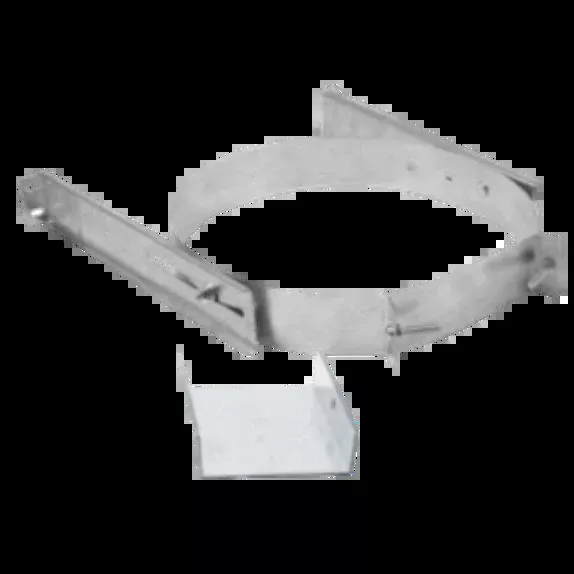

DuraTech Wall Strap 5″ to 8″
| Size | 6″ | 8″ |
| A | 8″ | 10″ |
| B | 11.75″ | 14″ |
