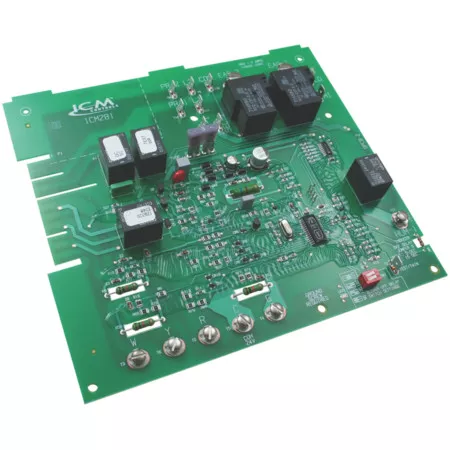

The ICM281 Carrier Replacement Furnace Control Module / Board. This board is used to control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner. It is a replacement for Carrier CES0110020, CES0110048 and CES0110057-xx series control boards.
- Microprocessor-based for precise timing
- Functions with all 24 VAC thermostats
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM281 board
- Reverse polarity protection
- Secondary brownout voltage protection
- Diagnostic fault codes (blinking LED) for simple troubleshooting
Specifications:
- Line Voltage Range: 98 to 132 VAC @ 60 Hz
- Ignitor: 5A @ 120 VAC
- Cool Blower: 30A, 2 HP, 240 VAC
- Heat: 5A, 1/2 HP, 240 VAC
- Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
- Gas Valve: 1.5A @ 30 VAC
Dimensions:
- .75″h x 8.5″w x 7.625″l
Replaces:
- Carrier: CES0110020, CES0110048 and CES0110057-xx series
