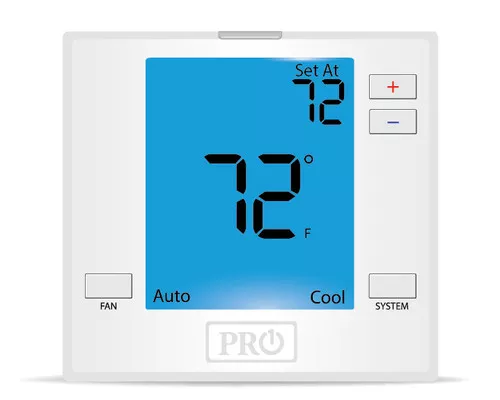

PRO1 T751 Universal Non-Programmable Thermostat for PTACs

The T751 is a universal, non-programmable thermostat. It features a large, easy to read, 7″ sq. blue backlighted display, setpoint limits as well as adjustable heating and cooling swings (cycle rates) that are adjustable from 0.2°F – 2.0°F. It can be used for conventional 2 heat and 2 cool operation or 3 heat/2 cool heat pump operation. This thermostat also has a 5 minute compressor delay protection (selectable on or off). It is electric or gas configurable. This thermostat is hardwire only. Dimensions are 4.7″w x 4.4″h x 0.8″d. Buttons are easy to use with up and down arrows for room temperature settings and a fan button to select from 3 speed (High/Medium/Low) as well as Auto Fan, and a system switch button (Cool/Off/Heat/Auto). The system and fan buttons are simply pressed to select your choice. Display Range: 41°F – 95°F (5°C – 35°C)Control Range: 44°F – 90°F (7°C – 32°C)Display Accuracy: +/- 1°FAmbient Operating Range: 32°F – 105°F (0°C – 41°C)Operating Humidity: 90% non-condensing max. Terminals: Rc, Rh, G, Y, Y2, C, O, B, W/E, W2Load Rating: 1 amp per terminal, 1.5 amp maximum all terminals combinedPower Source: 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) – Hardwire ONLY
